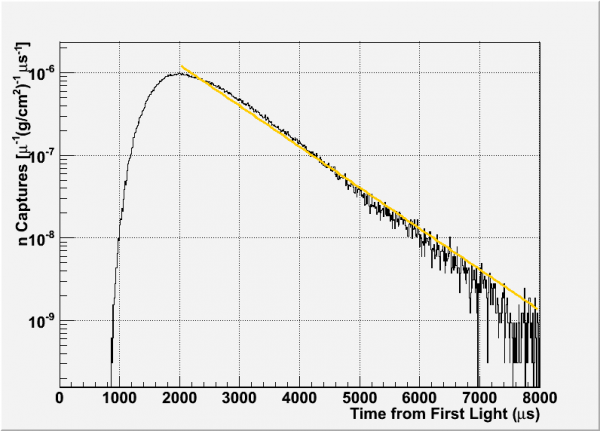

Figure 1: Hydrogen Neutron Captures vs. Time	Figure 2: Hydrogen Neutron Captures vs. Time Comparing Mu-Nuc On and Off

τ = 876.9

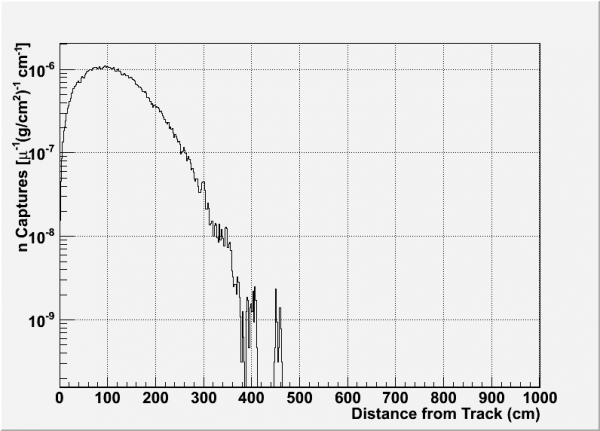

Figure 3: Hydrogen Neutron Captures vs. Radial Distance	Figure 4: Hydrogen Neutron Captures vs. Radial Distance Comparing Mu-Nuc On and Off

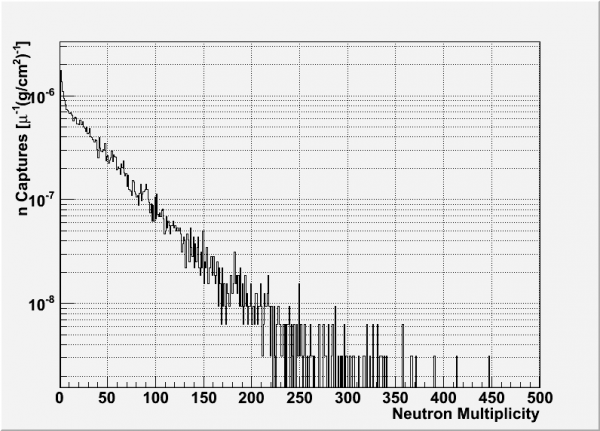

Figure 5: Hydrogen Neutron Captures vs. Multiplicity	Figure 6: Hydrogen Neutron Captures vs. Multiplicity Comparing Mu-Nuc On and Off

The plots below are neutrons captured by Carbon. Please note that making these plots required me to remove an energy cut I was using in the case of Hydrogen to ensure that the resulting energetic Hydrogen actually came from neutrons. I have manually checked a small portion of data and found that all excited Carbon came from a neutron parent. However, this was a very small portion of the data and cannot be assumed to represent the whole.

Figure 7: Carbon Neutron Captures vs. Time
Figure 8: Carbon Neutron Captures vs. Radial Distance
Figure 9: Carbon Neutron Captures vs. Multiplicity
